Drying Science 101
What Really Happens After Water Damage
When most homeowners walk into a water-damaged room and see air movers and dehumidifiers running, it can look simple. Fans are plugged in. A dehumidifier is humming. Doors might be closed. Plastic may be taped up.
From the outside, it appears straightforward.
In reality, a professional drying setup is a controlled, calculated, and documented scientific process rooted in building science and psychrometrics. It is engineered to prevent secondary damage, reduce microbial risk, and return materials to a dry standard that aligns with industry benchmarks.
Below is a detailed look at what truly happens behind the scenes.
Why Air Movers Face the Wall
One of the most common questions homeowners ask is:
“Why are the fans pointed at the wall instead of into the middle of the room?”
The answer lies in evaporation physics.
Creating Laminar Airflow
Air movers are positioned to create laminar airflow across wet structural surfaces. When high-velocity air moves parallel to a wet surface, it disrupts the boundary layer of saturated air that forms at the material’s surface.
Without airflow, moisture evaporates slowly because the air immediately above the material becomes saturated. Once saturated, evaporation slows dramatically.
By directing air across:
- Drywall
- Base plates
- Subfloor
- Cabinet toe kicks
- Hardwood flooring
We continuously replace saturated air with drier air. This accelerates evaporation.
It Is About Surface Drying, Not Room Cooling
Air movers are not installed to cool a room. They are not installed to make noise. They are not installed randomly.
They are strategically placed to:
- Increase evaporation rate
- Promote directional drying
- Target specific wet zones
Placement is calculated based on:
- Material type
- Degree of saturation
- Room configuration
- Obstructions
- Power availability
Improper placement slows drying and increases overall cost.
Why We Remove Baseboards
Baseboard removal often surprises property owners.
“Do those really need to come off?”
In many cases, yes:
Water Travels Vertically
Drywall is porous. When water affects flooring, it frequently wicks upward into drywall through capillary action.
Even if the visible wet line appears minimal, moisture can be present behind the surface.
Baseboard removal allows us to:
- Inspect lower drywall
- Create airflow access behind the wall cavity
- Prevent trapped moisture conditions
- Reduce microbial amplification risk
Cavity Drying Access
Once baseboards are removed, we can introduce targeted airflow:
- Injectidry systems
- Wall cavity ventilation
- Focused air mover positioning
Without removing baseboards, the wall cavity can remain wet while the exterior surface appears dry.
That is a false dry condition, and it creates long-term problems.
What Those Readings Mean
A professional drying setup is driven by data.
Every day, technicians collect measurements to evaluate drying progress. This is not guesswork. It is documented science.
Moisture Content vs Equilibrium Moisture Content

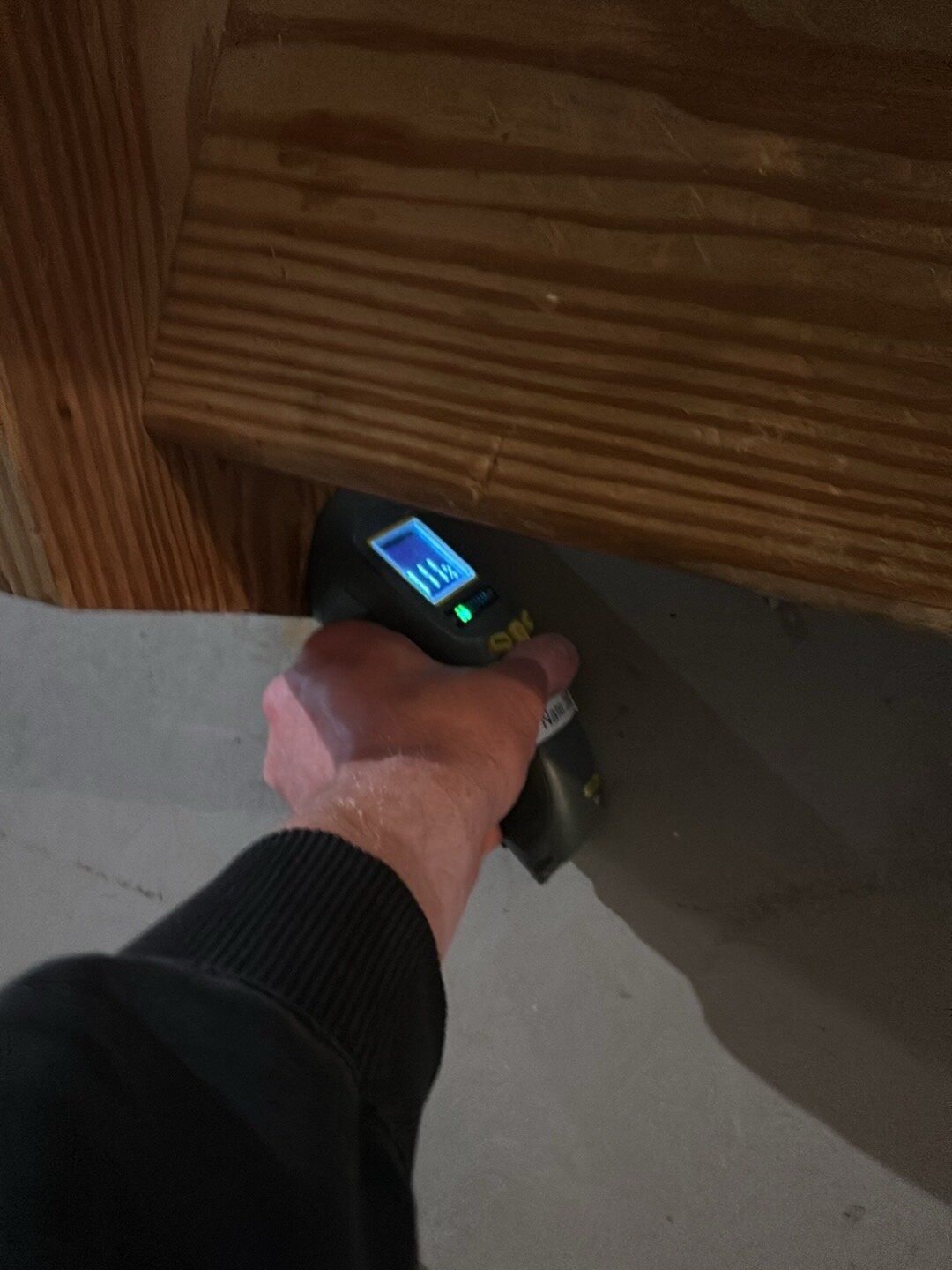

We measure materials using calibrated moisture meters. Two key concepts matter:
Moisture Content
The percentage of water within a material.
Equilibrium Moisture Content
The level at which material moisture balances with surrounding air conditions.
Drying is complete when materials return to an acceptable dry standard, typically comparable to unaffected materials in the same structure.
We do not rely on touch.
We rely on instrumentation.
Ambient Readings
Each day, we measure:
- Temperature
- Relative Humidity
- Grains Per Pound
- Dew Point
These readings determine whether equipment is:
- Properly sized
- Properly placed
- Achieving the correct vapor pressure differential
If adjustments are needed, we make them.
Why Documentation Matters
Drying logs serve multiple purposes:
- Verifying progress
- Demonstrating performance
- Protecting property owners
- Confirming industry standard compliance
Every reading tells a story about how the structure is responding.
When We Know It Is Dry
One of the most misunderstood aspects of mitigation is determining when drying is complete.
It is not when the carpet feels dry.
It is not when the room smells better.
It is not when equipment has run for “a few days.”
It is when materials meet a verified dry standard.
Establishing a Dry Goal
At the beginning of the project, we identify unaffected areas and record baseline readings. Those areas serve as our drying target.
For example:
- Dry framing may read 8 to 12 percent moisture content
- Wet framing may read 24 percent
The goal is not “dry to the touch.”
The goal is return to normal moisture levels for that environment.
Verification Process
Before equipment removal, we:
- Confirm moisture levels match baseline
- Inspect concealed spaces
- Check subfloor and sill plates
- Review ambient stability
Only when data confirms proper drying do we remove equipment.
Removing equipment prematurely often leads to:
- Re-wetting
- Secondary microbial growth
- Extended repairs
Precision matters.
The Science Driving the Setup
To truly understand what happens behind the scenes, it helps to understand the science.
Professional structural drying is built on psychrometrics, the study of air and water vapor relationships.
Evaporation Requires Three Things
- Air movement
- Heat
- Dehumidification
Air movement increases evaporation.
Heat increases vapor pressure.
Dehumidification removes evaporated moisture from the air.
If one of those components is missing, drying slows significantly.
Equipment Selection Is Intentional
Not all dehumidifiers are equal.
Not all air movers perform the same.
Low Grain Refrigerant Dehumidifiers
In many residential projects, we use LGR dehumidifiers. These units:
- Remove moisture at lower humidity levels
- Operate efficiently in structural drying environments
- Extract significant pints per day
Air Movers
Commercial air movers produce high-velocity airflow engineered for:
- Surface agitation
- Focused drying
- Stack effect enhancement
They are not box fans.
They are engineered drying tools.
Negative Air and HEPA Filtration
In certain losses, especially where contamination is involved, we establish containment and negative pressure. This protects unaffected areas and improves indoor air quality during the drying phase.
Why Speed Matters
Time is the most expensive variable in water damage.
Within the first 24 hours:
- Drywall begins swelling
- Wood absorbs moisture
- Flooring adhesives weaken
Within 48 hours:
- Microbial growth can begin
- Odor development increases
- Materials become harder to salvage
A properly engineered drying setup reduces:
- Demolition scope
- Reconstruction cost
- Project duration
Early intervention is financially strategic.
Controlled Demolition vs Over-Demolition
Professional drying is about precision. We remove only what is necessary. Without proper drying science, contractors often default to excessive demolition because it feels safer.
However, when:
- Moisture is mapped accurately
- Equipment is properly sized
- Monitoring is consistent
Many materials can be restored instead of replaced.
That is better for:
- Timeline
- Budget
- Property integrity
Power Management and Safety
A drying setup requires significant electrical load.
We evaluate:
- Circuit capacity
- Breaker distribution
- Load balancing
- Extension cord safety
Equipment is positioned to avoid:
- Overheating
- Fire risk
- Trip hazards
Safety protocols are non-negotiable.
Communication During Drying
Behind the scenes also means daily updates.
Property owners deserve to understand:
- What we are measuring
- How drying is progressing
- Expected completion timeline
- Next phase steps
Transparency builds confidence. Drying is temporary disruption with a defined objective. Clear communication makes that process manageable.
What Homeowners Should Expect
When mitigation begins, expect:
- Equipment noise
- Increased room temperature
- Restricted access
- Daily monitoring visits
These conditions are temporary and purposeful. Each piece of equipment serves a defined role in the drying equation.
The Bigger Picture
Mitigation is stabilization. Reconstruction is restoration. Without proper stabilization, reconstruction becomes compromised.
A well-designed drying setup protects:
- Structural integrity
- Indoor air quality
- Long-term durability
- Financial investment
What looks like “a few fans” is actually a coordinated system engineered to return a structure to a verified dry standard.
Final Thoughts
Behind every drying setup is:
- Data
- Training
- Experience
- Accountability
Air movers face the wall for a reason.
Baseboards come off for a reason.
Daily readings are taken for a reason.
And equipment is removed only when science confirms the job is complete.
Water damage is disruptive.
Professional drying is deliberate.
If you ever walk into a room and see equipment running, now you know what is really happening behind the scenes.
It is not guesswork.
It is controlled structural drying backed by building science.
